Magnetic Amplifier Nanocrystalline Core

Various packages meet different customer’s demand.
Model: 10.8×19.8×6.6
Core Form: Plastic case
Performance: Total flux 2Φm : 24.28μWb
Core Material: Nanocrystalline strip

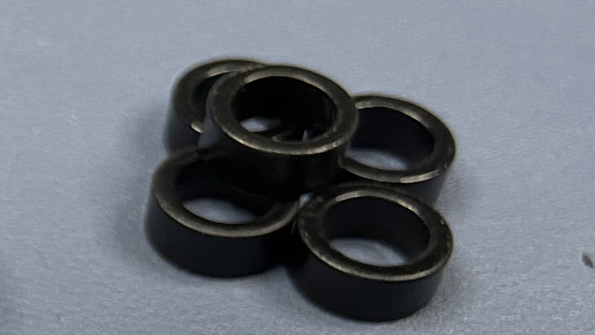

Magnetic Amplifier Nano Core
Magnetic Amplifier Nano Core
Magnetic Amplifier Nano Core
Magnetic Amplifier Nano Core
Magnetic Amplifier Nano Core
Magnetic Amplifier Nano Core
Introduction
Advantage
Representative model
Application
Videos
Related products
Inquiry
Introduction
Application
Magnetic amplifier switching power supply
Advantage
FEATURE 1
Low coercivity
FEATURE 2
Make the core size more small
FEATURE 3
High saturation magnetic induction Bs
FEATURE 4
Compared with co-based amorphous core, nano core has lower price.
FEATURE 5
Compared with cobalt-based amorphous core, nanocrystalline core has a higher Curie temperature ,better temperature stability (-40℃~120℃)
FEATURE 6
Color can change with large order
Representative model
Basic Magnetic Parameters NH Co-based amorphous core (saturable) Iron core
Saturation Inductance Bs(T) 1.2 0.54 0.54
Squareness ratio Br/Bs 0.85 0.85 0.85
Coercivity Hc(A/m) 0.7 0.6 0.6
Curie temperature Tc(°C) 570 200 200
Core loss P2/100K(Kw/M³) 800 450 450

Bare core size(mm) Core size with plastic case(mm) Effective cross-sectional area(mm²) Average magnetic path length(mm) total flux 2Φm(μWb) Squareness ratio(Br/Bs) f=100KHZ
ID×OD×HT ID×OD×HT
3.5×9.0×7.2 4.5×8×5.0 6.56 19.6 15.74 92%
5.1×11.3×6.6 6.5×10×4.5 5.9 25.9 14.16
6.7×13.9×6.6 8.0×12×4.5 6.75 31.4 16.2
8.8×15.9×7.2 10×14×5.0 7.5 37.6 18
10.8×19.8×6.6 12×18×4.5 10.12 47.1 24.28
12.8×22.8×6.6 14×21×4.5 11.8 55 28.32
