Your Position : Home > Products > Nano Core

High frequency power transformers (inverter amorphous main transformer)

Various packages meet different customer’s demand.
Model: Sizes can be customized.
Core Form: Plastic Case
Core Material: Nanocrystalline material
Packing: Two different package for air and sea shipment
Send Email
Chat Now
Whatsapp:+86-13373703313

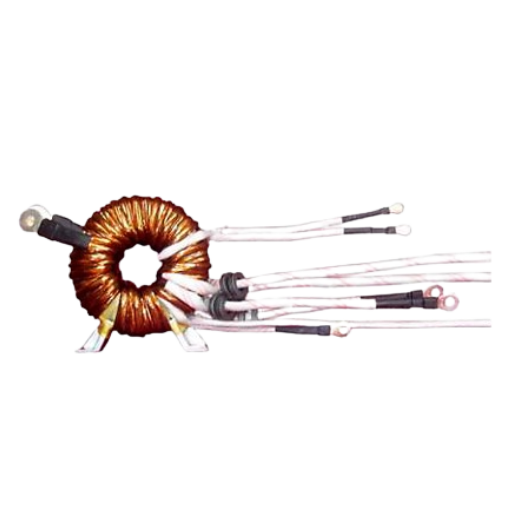

High frequency power transformers2
High frequency power transformers2
Introduction
Feature
Product parameter
Application
Videos
Related products
Inquiry
Introduction

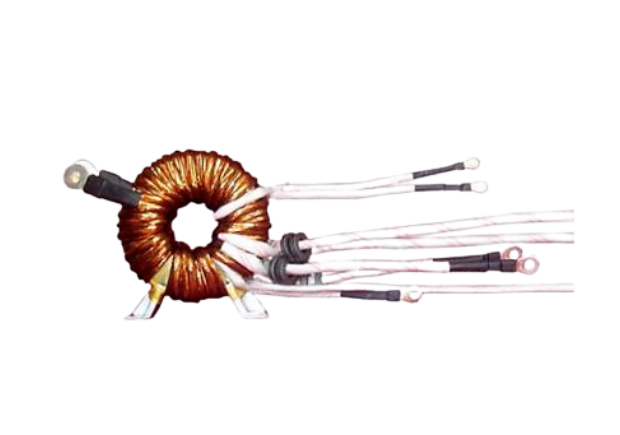

High frequency power transformers3
High frequency power transformer(inverter transformer) is a kind of transformer widely used in ac/dc conversion. Nanocrystalline materials can effectively reduce the volume of iron core. Nanocrystals have excellent performance in inverter transformer due to their unique high magnetic conductivity and high saturation magnetic induction intensity.
Feature
FEATURE 1
High magnetic permeability
FEATURE 2
High saturation magnetic induction intensity
FEATURE 3
Small volume
FEATURE 4
Less windings
FEATURE 5
Low loss
FEATURE 6
Low temperature rise
Product parameter
Saturated magnetic induction
density ( Bs)		 1.25T Density 7.2g/cm³
Curie temperature ( Tc) 570°C Electrical resistivity 130μΩ/cm
Crystallization temperature (Tx) 490°C Thickness 20~36μm
Initial permeability 120000min Lamination factor 0.75min

Product Model
Product code Specification model
BD-064-0001 64*40*20
BD-080-0001 80*50*25
BD-120-0001 120*70*20
BD-120-0002 120*60*30
BD-120-0003 120*60*30
BD-130-0001 130*80*40
BD-100-0001 100*60*20
BD-130-0003 130*80*40
8KW Main transformer 70*40*25
Application
used-in-smart-grid
Used In Smart Grid
used-in-avionics
Used In Avionics
used-in-current-transformer
Used In Current Transformer
Used-In-New-Energy-Vehicles
Used In New Energy Vehicles
Used In Household Appliances
Used In Household Appliances
used-in-smart-meter
Used In Smart Meter
Videos
Bidragon Nanocrystalline Single Core With Dc Immunity 4x3x5
Bidragon Nanocrystalline Single Core With Dc Immunity 4x3x5
20×30×8 Anti DC Transformer Dual Core
20×30×8 Anti DC Transformer Dual Core
BIDRAGON Higest Quality Magnetic Cores 15x24x15
BIDRAGON Higest Quality Magnetic Cores 15x24x15
