Your Position : Home > Products > Magnetic Ribbons

Co-based Amorphous Alloy Ribbon

Various packages meet different customer’s demand.
Model: 1K601
Material: Co based
Lamination factor: ≥80%
Resistivity: 120μΩ/cm

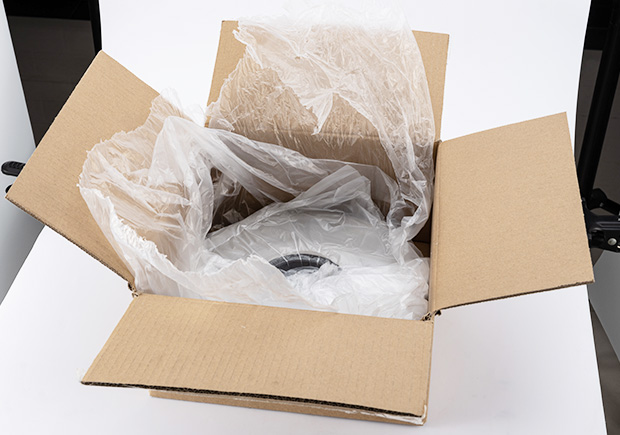

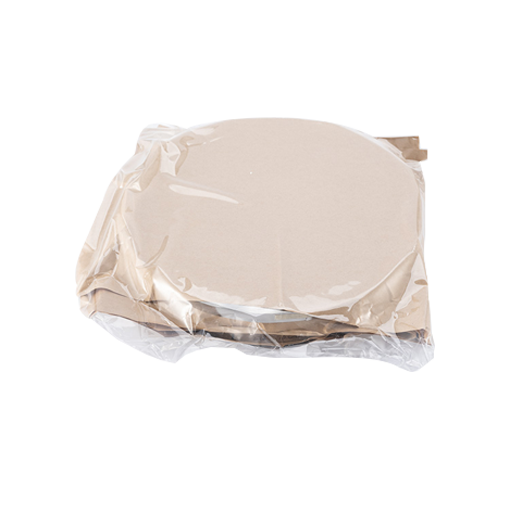

Package: Vacuum packaging and non-vacuum packaging
Send Email
Chat Now
Whatsapp:+86-13373703313
Co-based Ribbon
Co-based Ribbon
Introduction
Feature
Specification
Application
Videos
Related products
Inquiry
Introduction
COMPARE 1:
Hot sale Co-based amorphous alloy is composed of Fe, Co, Si, B, etc. It has high permeability, constant permeability, low remanence and low loss at high frequency. The magnetostriction coefficient is close to zero. It can work in harsh environment for a long time. The stability and reliability of the products are very high, especially suitable for military products.
Feature
FEATURE 1
High permeability
FEATURE 2
Low core loss
FEATURE 3
Low coercivity
FEATURE 4
Insensitivity to mechanical stress
FEATURE 5
Low remanence
FEATURE 6
Constant magnetic permeability
Specification
Material Initial permeability Remanence ratio Coercivity Magnetic saturation induction intensity Resistivity
　 μi Br/Bs Hc(A/m) BS（T） σ（μΩ·cm）
Nanocrystalline 50000-100000 45%-65% ≤1.5 1.25 120
Co-based amorphous 300000 >90% ≤4 0.5-0.9 140
Iron 150 / 80 2.14 10
Non-oriented 3% Si-sheel 270 / 60 2.01 47
Application
used-in-smart-grid
Used In Smart Grid
used-in-avionics
Used In Avionics
used-in-current-transformer
Used In Current Transformer
Used-In-New-Energy-Vehicles
Used In New Energy Vehicles
Used In Household Appliances
Used In Household Appliances
used-in-smart-meter
Used In Smart Meter
Videos
BIDRAGON DC Immune Single Cores 7 x 6 x 4 with Nanocrystalline Strip
BIDRAGON DC Immune Single Cores 7 x 6 x 4 with Nanocrystalline Strip
Bidragon Zero Phase Current Transformer Core With Nanocrystalline Strip 4x3x4
Bidragon Zero Phase Current Transformer Core With Nanocrystalline Strip 4x3x4
China Manufacture Bidragon Best Toroidal Cores From Amorphous Alloys 2 x 1 x 3
China Manufacture Bidragon Best Toroidal Cores From Amorphous Alloys 2 x 1 x 3
