Your Position : Home > Products > Magnetic Ribbons

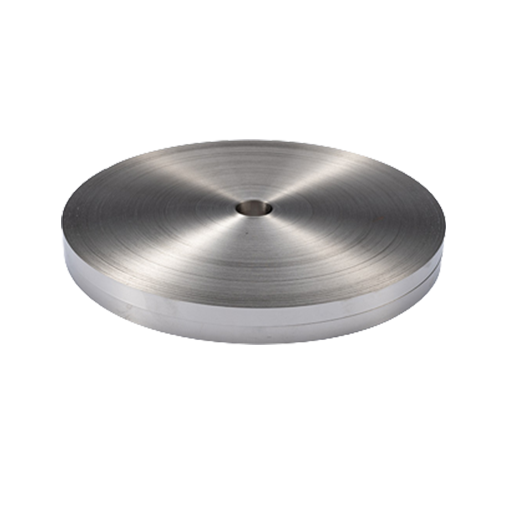

Amorphous Ribbon

Various packages meet different customer’s demand.
Model: 1K101
Material: Fe based
Lamination factor: ≥0.84%
Applicable frequency: ＜10KHz

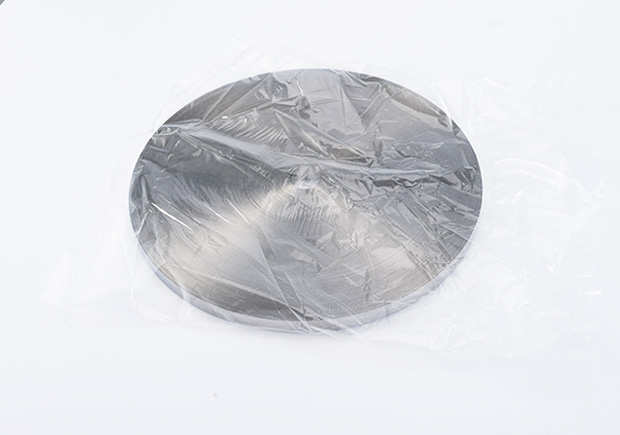

Package: Vacuum packaging and non-vacuum packaging
Send Email
Chat Now
Whatsapp:+86-13373703313
Amorphous Ribbon
Amorphous Ribbon
Amorphous Ribbon
Amorphous Ribbon
Introduction
Feature
Specification
Application
Videos
Related products
Inquiry
Introduction
COMPARE 1:
Real Fe-Based Amorphous Ribbon is an ultra-fine grain structure that has high permeability, high saturation magnetic induction, low loss and excelent stability. It can satisfy the requests of electronical products which is high frequency, large current, small volume and energy-saving. Especially it can replace the silicon steel, permalloy and ferrite and be used to all kinds of electronical products widely.
Feature
FEATURE 1
High temperature stability
FEATURE 2
Low loss - reduce temperature rise
FEATURE 3
Low coercivity - improving efficiency
FEATURE 4
Low magnetic extension - reduce noise
FEATURE 5
Excellent frequency characteristics
FEATURE 6
High saturation magnetic induction, high permeability-reduce the size
Specification
Item Performance Item Performance
Magnetic saturation induction intensity Bs(T) 1.56 Saturation magnetostriction coefficient 0.000027
Curie temperature Tc (℃） 400 Density ρ(g/cm3) 7.18
Crystallization temperature 515 Resistivity δ(μΩ▪cm) 130
Hardness Hv 960 Coercivity Hc(A/m) <4

Width (mm) Thickness (mm)
5 28
6.5 28
15 28
35 28
50 28
70 28
Application
used-in-smart-grid
Used In Smart Grid
used-in-avionics
Used In Avionics
used-in-current-transformer
Used In Current Transformer
Used-In-New-Energy-Vehicles
Used In New Energy Vehicles
Used In Household Appliances
Used In Household Appliances
used-in-smart-meter
Used In Smart Meter
Videos
China Manufacture Bidragon Best Toroidal Cores From Amorphous Alloys 2 x 1 x 3
China Manufacture Bidragon Best Toroidal Cores From Amorphous Alloys 2 x 1 x 3
BIDRAGON Epoxy Nanocrystalline Cores Production Process
BIDRAGON Epoxy Nanocrystalline Cores Production Process
Two Decomposition Let You Know Us
Two Decomposition Let You Know Us
