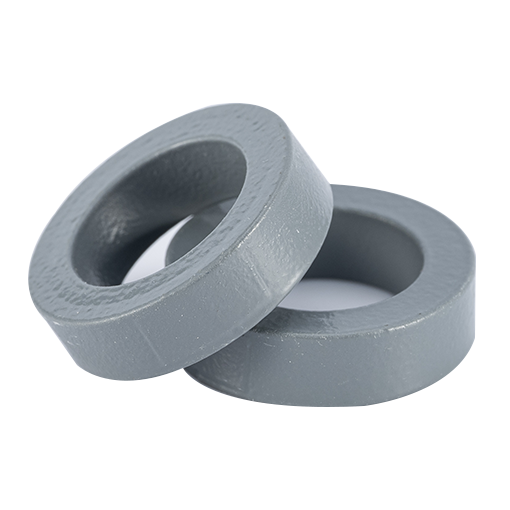

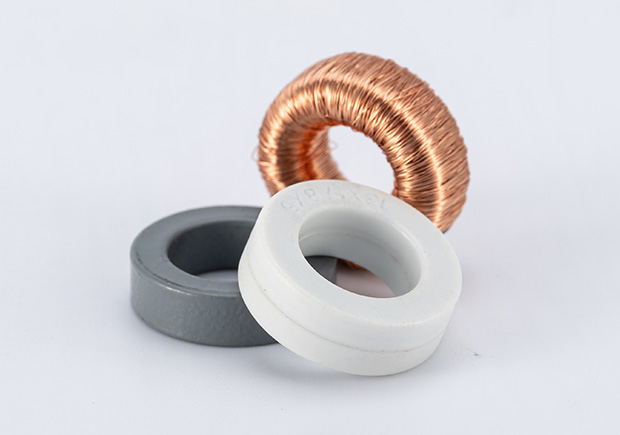

DC immune CT single core

Various packages meet different customer’s demand.
Model: 12.7x18.4x5
Core Form: Grey Epoxy
Performance: 72A DC immune
Core Material: Nano crystalline strip
DC immune CT single core
DC immune CT single core
DC immune CT single core
DC immune CT single core
DC immune CT single core
DC immune CT single core
Introduction
Technical Parameters
Application
Videos
Related products
Inquiry
Introduction
DC immune CT single core
  As a famous amorphous core, nano core, DC immune CT core supplier, we have been successfully research the IEC standard single nano core. Seldom DC Immune current transformer core manufacturers can produce this model wound cores .As we all know in Europe market, the core quality much higher. Our single DC IMMUNE CORES has high linearity, high precision, easy error compensation and strong DC resistance and wide current range. But the price of this core is a little higher than the dual core-nanocrystalline & amorphous.
  For more products, such as amorphous strips, nano strips, toroidal amorphous core, ring nano crystalline core, other magnetic ring cores, we can also offer.
Application
Used in leakage protection switch
Advantage
1. High permeability
2. Low coercivity
3. Low loss
4. Excellent anti-saturation ability
5. Excellent temperature stability
Technical Parameters
Bare Core Size(mm) Epoxy Coated size(mm) Class grade Max current apply
ID×OD×HT ID×OD×HT
Φ13*18*5 Φ12.5×18.7×5.8 0.5-0.1 72A
Φ17×22×6.5 Φ16.5×22.7×7.3 0.5-0.1 72A-96A
Φ20×25×6.5 Φ19.2×25.8×7.3 0.5-0.1 120A
Application

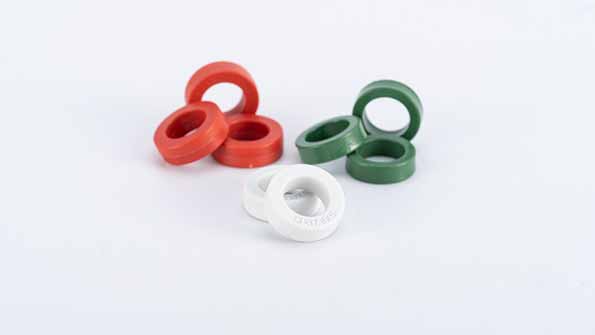

Used In Current Transformer
Used In Current Transformer
Used In Current Transformer
Used In Current Transformer
Used In Current Transformer
Used In Current Transformer
