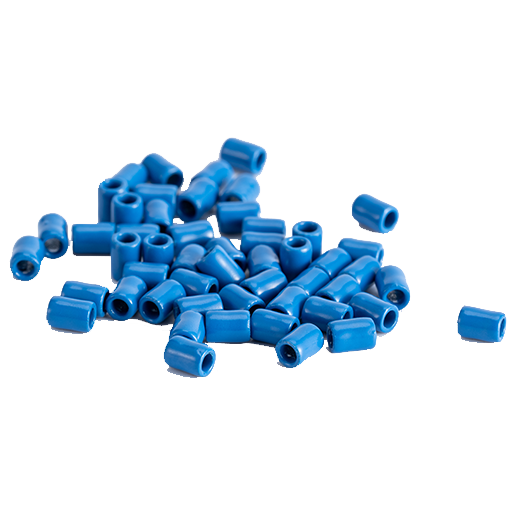

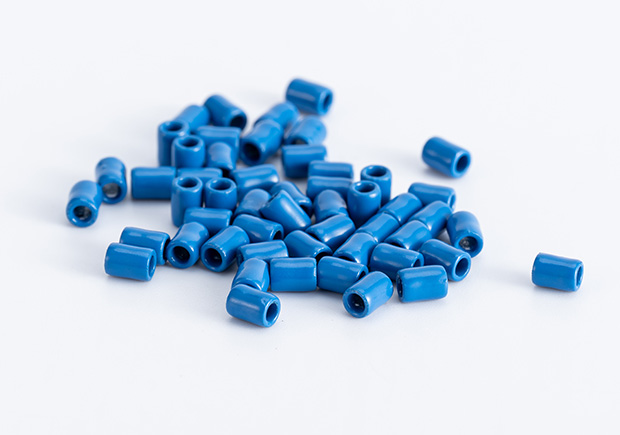

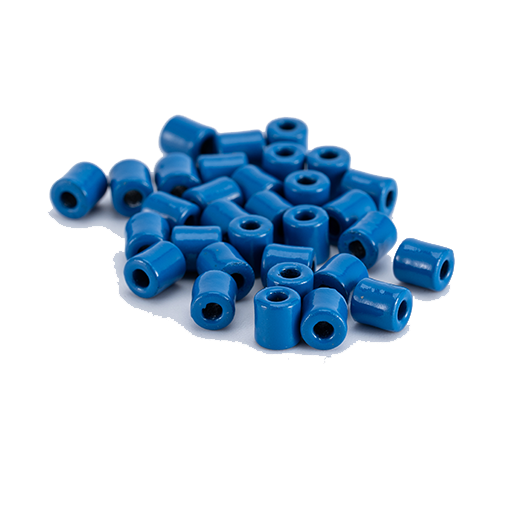

Spike Suppressor Amorphous Bead

Various packages meet different customer’s demand.
Model: 2.1×3.2×3
Core Form: Blue core
Performance: Epoxy
Core Material: Amorphous strip
Package: Two different package for air and sea shipment
Send Email
Chat Now
Whatsapp:+86-13373703313
Spike Suppressor Amorphous Bead
Spike Suppressor Amorphous Bead
Spike Suppressor Amorphous Bead
Spike Suppressor Amorphous Bead
Introduction
Feature
Related model
Application
Videos
Related products
Inquiry
Introduction
Spike Suppressor Amorphous Bead
Due to different appearance, amorphous core include plastic Fe-based amorphous core and epoxy Fe-based wound amorphous core; According to the size, this Fe-based magnetic core is divided into high saturation amorphous beads and filter inductance iron cores. It can used in iron-based amorphous filter inductor and spike suppressor.
COMPARE
1.Epoxy color can change
2.100% test epoxy thickness
3.Full automatic winding machine can wind so small cores.
Feature
FEATURE 1
Low core loss
FEATURE 2
High inductance when the current is zero.
FEATURE 3
This material core saturated at very low currents.
FEATURE 4
The spike suppressor utilizes a amorphous core with a well-shaped hysteresis loop to suppress reverse recovery current
FEATURE 5
During normal conduction, the core saturates with little blocking
FEATURE 6
ODM available
Related model
Bare core size(mm) Finished core size(mm) Remark
ID OD HT ID OD HT
4.5 7.5 4.5 3.9 8.2 5.2 Epoxy
2.1 3.2 3 1.6 3.9 3.7 Epoxy
2 3 3 1.6 4.05 4.5 Epoxy

Related model
Bare core size(mm) Finished core size(mm) Remark
ID OD HT ID OD HT
4.5 7.5 4.5 3.9 8.2 5.2 Epoxy
2.1 3.2 3 1.6 3.9 3.7 Epoxy
2 3 3 1.6 4.05 4.5 Epoxy
Application
used-in-smart-grid
Used In Smart Grid
used-in-avionics
Used In Avionics
used-in-current-transformer
Used In Current Transformer
Used-In-New-Energy-Vehicles
Used In New Energy Vehicles
Used In Household Appliances
Used In Household Appliances
used-in-smart-meter
Used In Smart Meter
